Camera Hồng Ngoại HIKVISION DS-2CD2143G2-IU
Camera Hồng Ngoại HIKVISION DS-2CD2143G2-IU
Nhà sản xuất : Hikvision
Xuất xứ : Trung Quốc
Bảo hành : 24 tháng
Tình trạng : Đang có hàng
Giá: Liên hệ để có giá tốt
- Thông tin sản phẩm
- Thông số kỹ thuật
- Thông tin thương hiệu

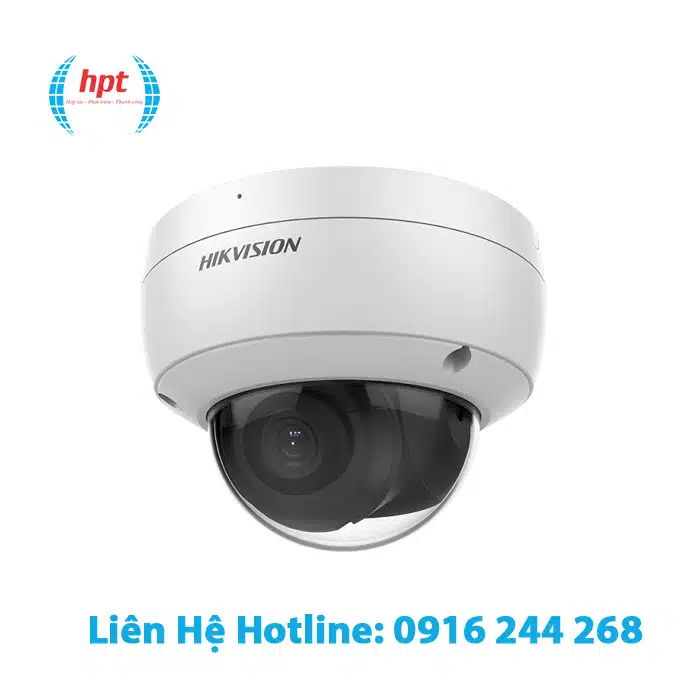

Camera IP Dome hồng ngoại 4.0 Megapixel HIKVISION DS-2CD2143G2-IU
– Cảm biến hình ảnh: 1/3-inch Progressive Scan CMOS.
– Độ phân giải: 4.0 Megapixel.
– Ống kính: 2.8mm (4mm optional).
– Tầm quan sát hồng ngoại: 30 mét.
– Chức năng chống ngược sáng 120dB WDR.
– Hỗ trợ các chức năng AGC, BLC, 3D DNR, HLC.
– Tính năng thông minh: Phát hiện xâm nhập, trèo rào; Phát hiện khuôn mặt; Báo hiệu con người/phương tiện.
– Khe cắm thẻ nhớ microSD 256GB (max).
– Tích hợp mic.
– Nguồn điện: 12VDC, PoE.
– Tiêu chuẩn chống bụi và nước: IP67 (thích hợp sử dụng trong nhà và ngoài trời).
– Tiêu chuẩn chống va đập: IK10.
Đặc tính kỹ thuật
Model | DS-2CD2143G2-IU |
Camera | |
Image Sensor | 1/3-inch Progressive Scan CMOS |
Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
Shutter Speed | 1/3 s to 1/100, 000 s |
Slow Shutter | Yes |
Wide Dynamic Range | 120 dB |
Day &Night | IR cut filter |
Angle Adjustment | Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° |
Lens | |
Lens | Fixed focal length, 2.8 and 4 mm optional |
Focal Length & FOV | 2.8 mm, horizontal FOV 103°, vertical FOV 55°, diagonal FOV 122° 4 mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 100° |
Aperture | F1.6 |
Lens Mount | M12 |
IR | |
IR Range | Up to 30 m |
Wavelength | 850 nm |
Video | |
Max. Resolution | 2688 × 1520 |
Video Compression | Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 |
Video Bit Rate | 32 Kbps to 16 Mbps |
Scalable Video Coding (SVC) | H.264 and H.265 encoding |
Region of Interest (ROI) | 1 fixed region for main stream and sub-stream |
Audio | |
Environment Noise Filtering | Yes |
Audio Compression | G.711ulaw/ G.711alaw/ G.722.1/ G.726/ MP2L2/ PCM/ MP3/ AAC |
Image | |
Day/Night Switch | Day, Night, Auto, Schedule |
Image Setting | Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
Image Enhancement | BLC, HLC, 3D DNR |
Image Parameters Switch | Yes |
SNR | ≥ 52 dB |
Network | |
Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP |
API | Open Network Video Interface (Profile S, Profile G), ISAPI, SDK |
Simultaneous Live View | Up to 6 channels |
Network Storage | MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR) |
User/Host | Up to 32 users. 3 user levels: administrator, operator and user |
Interface | |
Built-in Microphone | Yes |
On-board Storage | Built-in micro SD, up to 256 GB |
Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
Hardware Reset | Yes |
Intelligent | |
Basic Event | Motion detection (human and vehicle targets classification), video tampering alarm, exception |
Face Detection | Yes |
Perimeter Protection | Line crossing detection, intrusion detection Supports human and vehicle targets classification |
General | |
General Function | Anti-flicker, heartbeat, password reset via email, pixel counter |
Power Supply | 12 VDC ± 25%, reverse polarity protection PoE: 802.3af, Class 3 |
Power Consumption and Current | 12 VDC, 0.4 A, max. 5 W PoE (802.3af, 36 V to 57 V), 0.2 A to 0.15 A, max. 6.5 W |
Ingress Protection | IP67, IK10 |
Material | Aluminum alloy body Bubble: plastic |
Startup and Operating Conditions | -30 °C to 60 °C. Humidity 95% or less (non-condensing) |
Dimensions | Ø 121.4 mm × 92.2 mm |
Weight | 570g |
HPT Việt Nam là đơn vị chuyên nhập khẩu và thi công hệ thống an ninh, thiết bị an ninh, thiết bị công nghiệp, y tế, giáo dục và các thiết bị chuyên dùng công nghệ cao của nhiều thương hiệu lớn trên thế giới.
HPT Việt Nam đã thi công lắp đặt cho hơn 100 cửa hàng, trong đó có triển khai thành công cho top 10 hệ thống siêu thị lớn nhất tại Việt Nam. Ngoài ra, chúng tôi còn cung cấp các giải pháp thiết bị an ninh như cổng dò kim loại, máy xray, camera đo thân nhiệt, cổng xoay tripod, cổng flap gate…
LIÊN HỆ HOTLINE ĐỂ BIẾT THÊM THÔNG TIN VỀ SẢN PHẨM: 0916.244.268
LÝ DO CHỌN HPT VIỆT NAM LÀM ĐỐI TÁC CUNG ỨNG
Giá cam kết rẻ nhất thị trường: Nhập khẩu trực tiếp từ hãng, không qua trung gian, giá luôn tốt nhất.
Hàng hóa chính hãng: Các sản phẩm đều có chứng nhận CO và CQ, bảo hành chính hãng từ nhà sản xuất.
Lắp đặt và bảo hành tận nơi trên toàn quốc.
Tư vấn giải pháp miễn phí từ các chuyên gia 11 năm kinh nghiệm trong ngành.
Hồ sơ năng lực mạnh, hỗ trợ các SI, Đại lý làm nhiều dự án lớn. XEM TẠI ĐÂY.
Đặc tính kỹ thuật
Model | DS-2CD2143G2-IU |
Camera | |
Image Sensor | 1/3-inch Progressive Scan CMOS |
Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
Shutter Speed | 1/3 s to 1/100, 000 s |
Slow Shutter | Yes |
Wide Dynamic Range | 120 dB |
Day &Night | IR cut filter |
Angle Adjustment | Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° |
Lens | |
Lens | Fixed focal length, 2.8 and 4 mm optional |
Focal Length & FOV | 2.8 mm, horizontal FOV 103°, vertical FOV 55°, diagonal FOV 122° 4 mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 100° |
Aperture | F1.6 |
Lens Mount | M12 |
IR | |
IR Range | Up to 30 m |
Wavelength | 850 nm |
Video | |
Max. Resolution | 2688 × 1520 |
Video Compression | Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 |
Video Bit Rate | 32 Kbps to 16 Mbps |
Scalable Video Coding (SVC) | H.264 and H.265 encoding |
Region of Interest (ROI) | 1 fixed region for main stream and sub-stream |
Audio | |
Environment Noise Filtering | Yes |
Audio Compression | G.711ulaw/ G.711alaw/ G.722.1/ G.726/ MP2L2/ PCM/ MP3/ AAC |
Image | |
Day/Night Switch | Day, Night, Auto, Schedule |
Image Setting | Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
Image Enhancement | BLC, HLC, 3D DNR |
Image Parameters Switch | Yes |
SNR | ≥ 52 dB |
Network | |
Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP |
API | Open Network Video Interface (Profile S, Profile G), ISAPI, SDK |
Simultaneous Live View | Up to 6 channels |
Network Storage | MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR) |
User/Host | Up to 32 users. 3 user levels: administrator, operator and user |
Interface | |
Built-in Microphone | Yes |
On-board Storage | Built-in micro SD, up to 256 GB |
Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
Hardware Reset | Yes |
Intelligent | |
Basic Event | Motion detection (human and vehicle targets classification), video tampering alarm, exception |
Face Detection | Yes |
Perimeter Protection | Line crossing detection, intrusion detection Supports human and vehicle targets classification |
General | |
General Function | Anti-flicker, heartbeat, password reset via email, pixel counter |
Power Supply | 12 VDC ± 25%, reverse polarity protection PoE: 802.3af, Class 3 |
Power Consumption and Current | 12 VDC, 0.4 A, max. 5 W PoE (802.3af, 36 V to 57 V), 0.2 A to 0.15 A, max. 6.5 W |
Ingress Protection | IP67, IK10 |
Material | Aluminum alloy body Bubble: plastic |
Startup and Operating Conditions | -30 °C to 60 °C. Humidity 95% or less (non-condensing) |
Dimensions | Ø 121.4 mm × 92.2 mm |
Weight | 570g |
